<p> <span style="font-size:20px;"><strong>Love on every trip</strong></span> <br> The one-piece front face with wide light panel shows atmosphere and fashion in stability. <br>8.6-inch super large screen, information display is more comprehensive and clearer. </p>

A20 Electric Leisure Tricycle丨Multi-specification Power Matrix, Defining a New Benchmark for Comfortable Travel

Dual Power Platform, Accurately Matching Scene Requirements

Motor System: Dual power ranges cover all scene power requirements

•48V/60V-500W economic motor: adopts brushless sine wave technology, no-load speed of 520 rpm, noise below 58dB, suitable for light-load travel on flat roads, energy conversion rate of 82%, better endurance performance.

•60V/72V-650W powerful motor: peak torque increased by 30%, can easily cope with 20° slope, supports one-button switching of "load/climbing" mode, power attenuation rate reduced by 25% when overloaded, adapting to the dual needs of carrying people and goods.

Controller advantages: 15-tube sine wave intelligent control

Equipped with a 15-tube high-power controller, compared with the traditional 12-tube model, the current output accuracy is improved by 15%, with overcharge protection, stall protection and intelligent power distribution functions, ensuring that the 650W motor runs stably under the 72V system, and the endurance fluctuation range is ≤5%.

Battery configuration: dual-specification endurance solution, long-distance and short-distance are both easy

•60V-32AH large-capacity battery:

The endurance range is up to 60-70 kilometers (economic mode), suitable for single-day cross-regional commuting or suburban leisure riding, standard intelligent BMS battery management system, real-time monitoring of battery cell status, cycle life of more than 800 times, 220V household power supply 6-8 hours full.

•72V-20AH high-energy battery:

The voltage is increased by 20%, the power response speed is accelerated by 12%, the motor power output is more stable when climbing, the endurance is about 50-60 kilometers, it is suitable for frequent start-stop or complex road conditions, supports fast charging technology, and can be charged to 80% in 3 hours.

Body design: the golden ratio of compact size and comfortable space

•Body specifications: 1900950950MM exquisite size, wheelbase 1300MM, which can not only meet the space for 2-3 people (standard three-person seat cushion), but also can flexibly shuttle through narrow alleys and elevators. The ground clearance is 140MM, and the passability is better than similar models, and there is no bump when passing through the speed bumps in the community.

•31-tube hydraulic front fork: built-in double damping spring, road vibration filtering efficiency reaches 60%, with rear shock absorption design, vertical bump amplitude ≤3cm when riding, long-term riding waist fatigue is reduced by 40%.

Safety configuration: hand-foot linkage braking + explosion-proof tire design

•Brake system: innovative hand-foot linkage brake structure, left handle/right pedal dual control channel, brake response time ≤0.3 seconds, braking distance ≤2.2 meters at 20km/h, equipped with automatic gap compensation function to avoid braking force attenuation after long-term use.

•Tire advantages: 3.00-9 tubeless steel wire tire, Kevlar puncture-proof layer added to the tread, puncture resistance increased by 60%, tire pressure maintenance time extended by 3 times, with aluminum alloy wheels, lightweight design reduces energy consumption by 5%.

Analysis of model selling points

60V-32AH long-range model

•Core keywords: long-distance commuting, multi-person travel, large-capacity energy storage

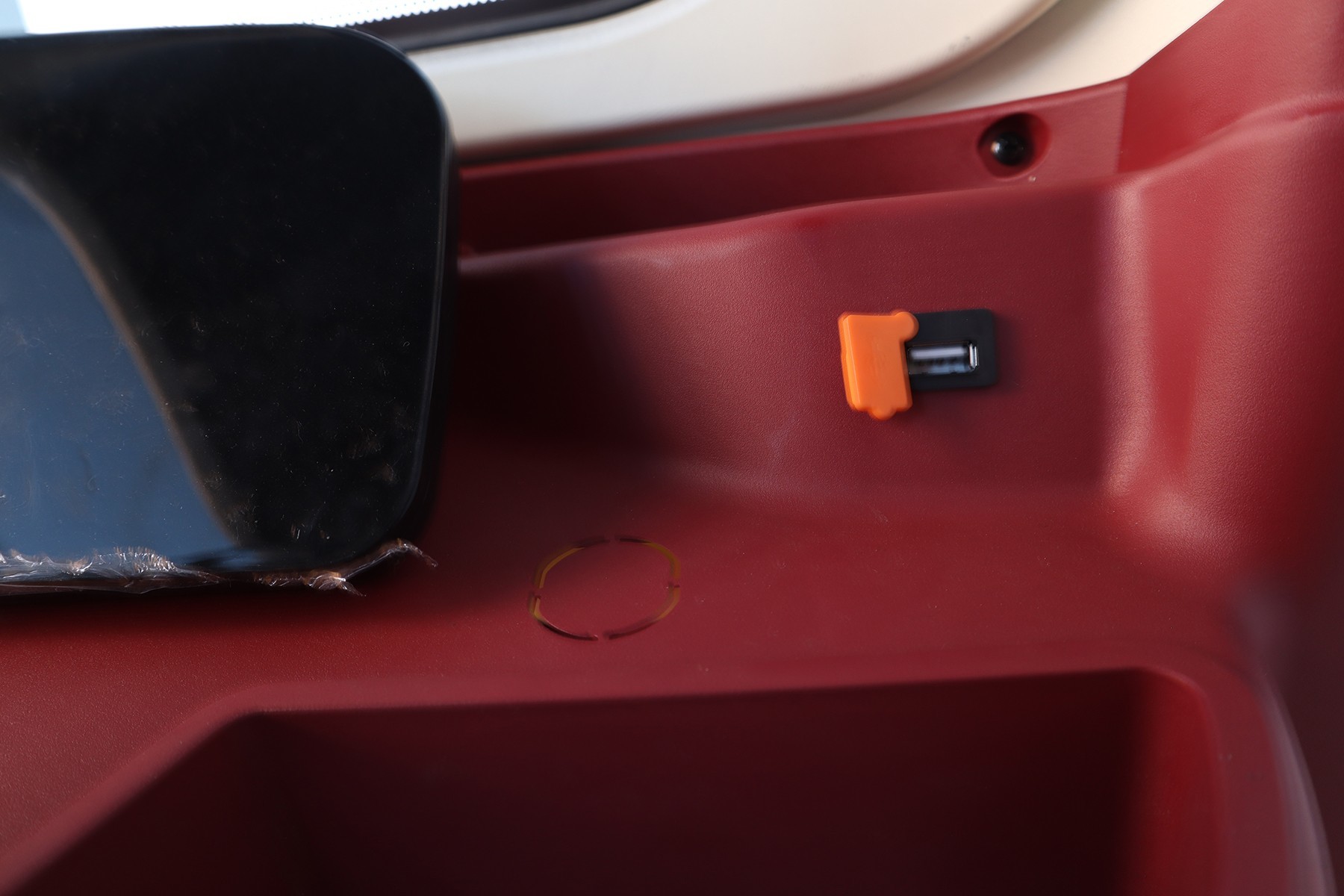

•Scenario adaptation: family weekend outings (can carry 2 adults and 1 child), vegetable vendors short-distance freight (rear cargo box load-bearing 80kg), standard USB charging port and LED high-brightness headlights, safer riding at night, suitable for users with rigid demand for battery life.

72V-20AH power model

•Core keywords: strong climbing, worry-free load, efficient and fast charging

•Scenario adaptation: commuting in urban and rural areas (frequent uphill and downhill sections), small cargo transportation (vehicle load-bearing 180kg), the motor shift mode supports one-button switching of "economy/power", and the vehicle does not slip when starting on a steep slope, which is suitable for middle-aged and young load-bearing users.

A20 takes "power stratification + scenario customization" as its core design concept. The dual battery specifications and dual motor configuration realize the travel experience of "short-distance energy saving and long-distance power". The hand-foot linkage brake and hydraulic suspension system take into account safety and comfort. It is an all-round choice for family commuting and commercial transportation.
